INTRODUCING : SENSOR DEVELOPMENT BOARDS

TE Connectivity (TE) introduces four new sensor development boards to help accelerate rapid
prototyping of new development designs. With low power and a small footprint, they are
particularly suitable for wearable and connected devices that gather and share information
about health monitoring, fitness, air quality and related applications. Each provide the necessary
hardware and software libraries to interface with multiple TE digital sensor products.

KEY BENEFITS
• Help accelerate product development and
rapid prototyping for pressure, temperature,
and humidity sensors
• Provide an easy interface to standard
platforms with Microchip Explorer 16,
ARDUINO/Genuino, Grove or Raspberry Pi options
• Utilize firmware on TE.com and GitHub.com
APPLICATIONS
• Medical
• Wearables

DISTINGUISHING CHARACTERISTICS
• 0% to 100% relative humidity range
(HTU21D and MS8607 sensor)
• Operating pressure range: 300 to 1200 mbar
(MS5637 sensor)
• Measures temperature from -40°C to +125°C,
accuracy from 0.1°C to 0.5°C (TSYS0101 sensor)
• Contactless temperature measurement from 0°C to +100°C (TSD305-1C55)

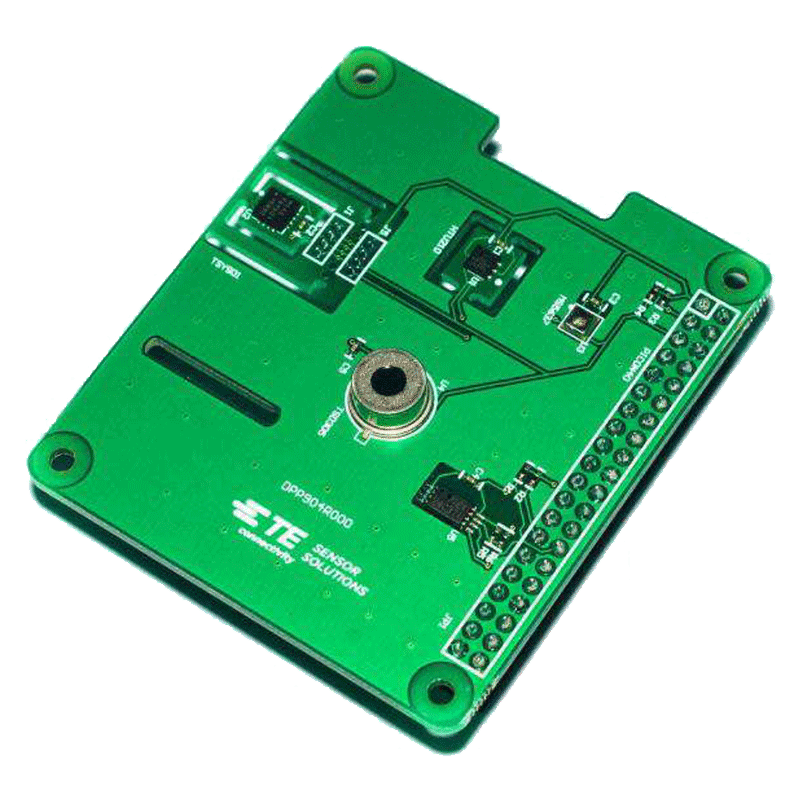

PI WEATHER SHIELD

The MEAS Pi weather shield provides the necessary hardware to any system that utilizes Raspberry Pi compatible expansion ports configurable for I2C communication.

PI WEATHER SHIELD /Datasheet
Python framework and example source code available onGithub
IBM Bluemix recipe available ondeveloperWorks

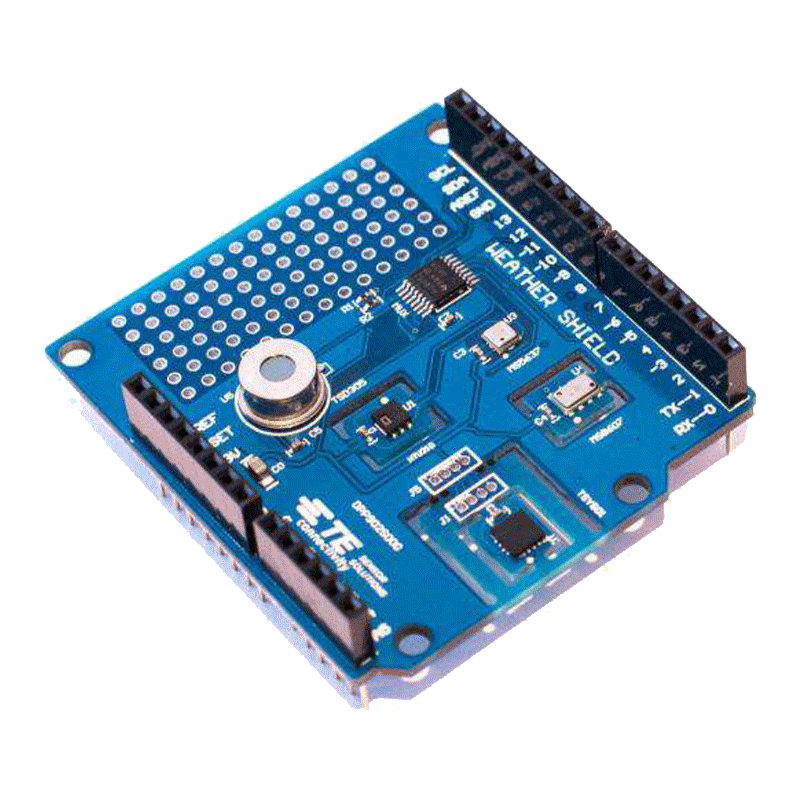

WEATHER SHIELD FOR ARDUINO/GENUINO

The MEAS weather shield for ARDUINO/Genuino mother board provides the necessary hardware to any system that utilizes ARDUINO/Genuino mother board compatible expansion ports configurable for I2C communication.

WEATHER SHIELD FOR ARDUINO/GENUINO Datasheet
Example source code available on Github

EXPLORER16 PICTAILPLUS MULTISENSE MODULE

EXPLORER16 PICTAILPLUS MULTISENSE MODULE

EXPLORER16 PICTAILPLUS MULTISENSE MODULE
Datasheet

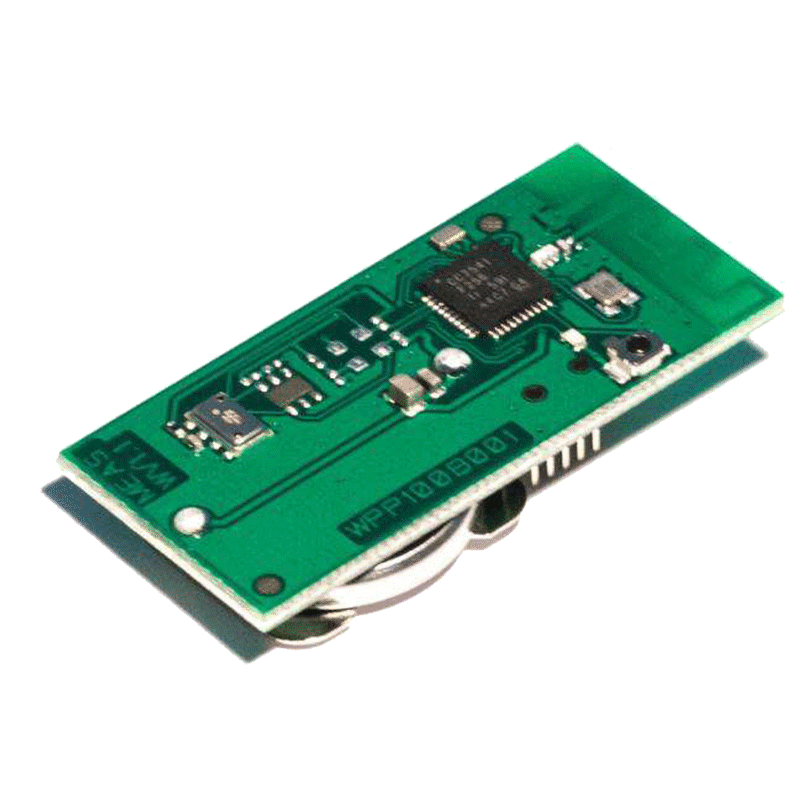

BLE Sensor Tag

The sensor tag demo V1.1 reports humidity, temperature and barometric pressure through a standard low power 2.4GHz wireless communication protocol.
